Engineered for Maximum Performance

Engineered for maximum flexibility, reliability and performance. Conflex® shrink packaging equipment incorporates leading-edge technology to take on the toughest shrink packaging challenges.

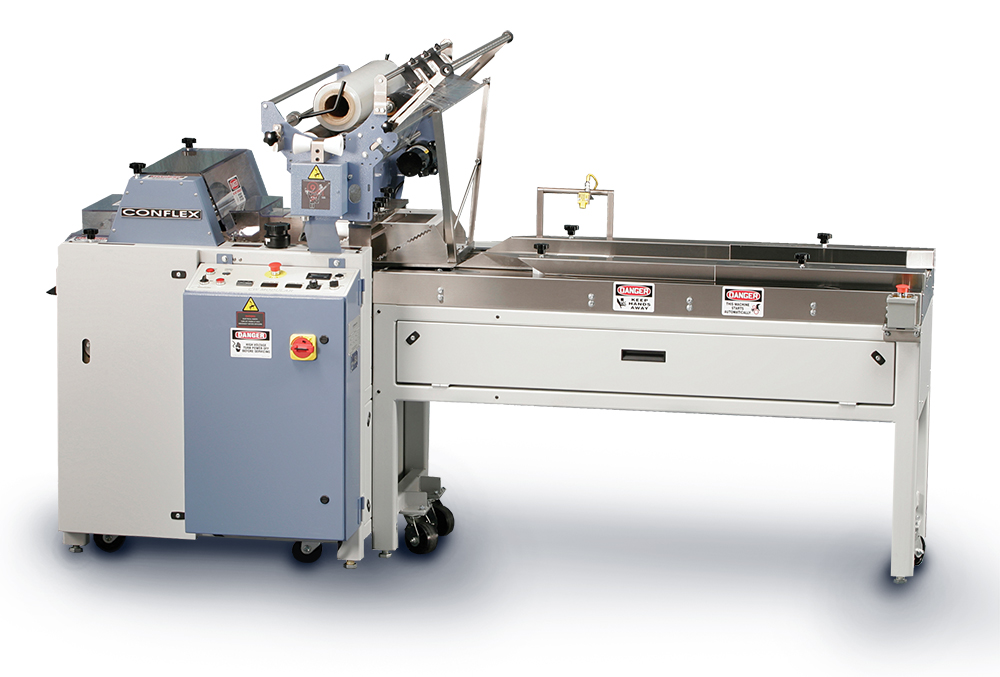

When speed is what you need, look no further than the high-speed, low-maintenance Conflex CW-Modular Series Horizontal Form Fill and Seal Wrapper! Based on a simple yet brilliant mechanical design, the CW-Modular Series features continuous motion and a rotary hot knife sealing system for maximum speed, hand-wheel adjustable controls and electronic eye sensors for exceptional efficiency…yet this system requires no air. Multiple options available to meet many packaging needs.

Brochure

Standard Features

  • Modular Infeed system – Allows for an unprecedented number of infeed system pairings
  • Allen Bradley Controls Package – Easily integrates with most production lines
  • Rotary Cross seal options – Fast and Smooth – Single or dual rotary seal heads
  • Choice of forming plows – Available in fixed or adjustable height forming plows to meet your exact needs
  • Servo Accurate Bag Sizing – Touch screen adjustable bag sizing
  • Cradle style powered film feed – Easy to load with fast change overs
  • Triple safety system – Protects operators and promotes safe work environment
  • Multiple options – Include thermal bottom seal, 5′ or 10′ infeed extensions, 440V operation, card-style side guides, and more

CW-Modular Series Models Available

  • CW-200 Horizontal Form Fill and Seal Wrapper:
    20” seal bar
  • CW-240 Horizontal Form Fill and Seal Wrapper:
    24” seal bar
  • CW-280 Horizontal Form Fill and Seal Wrapper:
    28” seal bar
  • CW-160SS Horizontal Form Fill and Seal Wrapper:
    USDA – approved stainless steel version
  • CW-160 Plus Horizontal Form Fill and Seal Wrapper:
    Features higher speed for faster package processing, 16” seal bar, speeds up to 200 ppm
  • CW-160SI Horizontal Form Fill and Seal Wrapper:
    Features servo infeed for maximum speed, 16” seal bar, speeds up to 200 ppm

Specifications

Electrical Requirements 220V, 20 Amps, 1 Phase
Air Requirements None
Film Requirements One roll, 3” core, single wound
Seal Bar 16”, 20”, 24”, 28”
Maximum Film Width 34”, 38”, 42”, 46”
Maximum Roll Diameter 13”

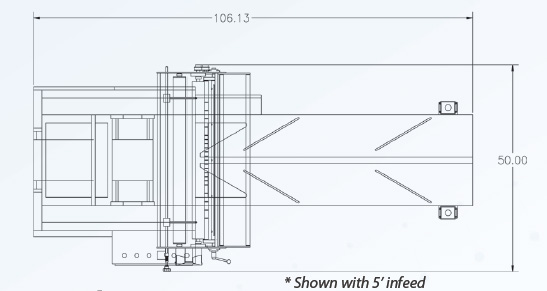

Overall Machine Dimensions 109” L x 52” W x 62” H (includes 5’ infeed)
Gross Weight 1,600 lbs. (includes 5’ infeed)
Maximum Operating Speeds 100, 200 ppm
Deck Height on Casters 36.5”
Package Dimensions 3” L to 36” L
2” W to 27” W
1/8” H to 5” H
